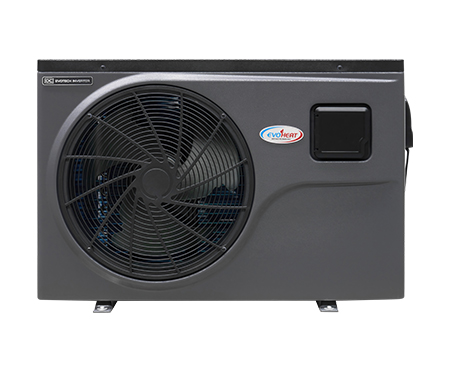

Evo Fusion-i Pro | Pool Heater

EXTEND YOUR SWIM SEASON WITH MINIMAL RUNNING COSTS

The Evo Fusion-i Pro is the perfect solution for recreational pool and spa owners who want to enjoy their swim season for longer with minimal running costs.

Request an Evaluation Contact Us

EXTEND YOUR SWIM SEASON WITH MINIMAL RUNNING COSTS

Evo Fusion-i Pro | Pool Heater

Features
Warranty
User Downloads
Reviews

Dive into comfort - Evo Fusion-i Pro Pool Heat Pump

Equipped with the latest technology, including stepless full DC inverter compressors, fans, and control systems, the Evo Fusion-i Pro offers an energy-efficient and environmentally friendly way to heat your pool or spa.

Upgraded with advanced features such as Solar Smart mode, an intuitive touch screen controller, Wi-Fi connectivity, and intelligent built-in timers, the Evo Fusion-i Pro offers a smarter, more efficient alternative to gas, solar thermal, or electric element heating systems, allowing you to extend your swim season effortlessly

Extremely energy efficient, C.O.P. up to 13
Select performance series
Heating and cooling capability
Latest cutting edge, intelligent full colour touch screen controller
Wi-Fi control
Modern grey cabinet
Built in operational timer

Remote Assist functionality
Solar Smart Optimisation
Eco-friendly R32 refrigerant
Easy installation
Horizontal discharge air flow
Ultra quiet operation
Ideal to work with solar PV

EXTEND YOUR SWIM SEASON WITH MINIMAL RUNNING COSTS

Latest Stepless DC Full Inverter Technology

Designed with the latest full inverter technology – including DC stepless compressors, fans, and PC boards; the Fusion-i Pro range will automatically adjust it’s power and electricity consumption based on the exact requirements of your pool.

This ensures your pool reaches the desired temperature faster and is maintained more efficiently – SAVING YOU ON YOUR HOUSEHOLD ENERGY BILL.

Exceptional Performance

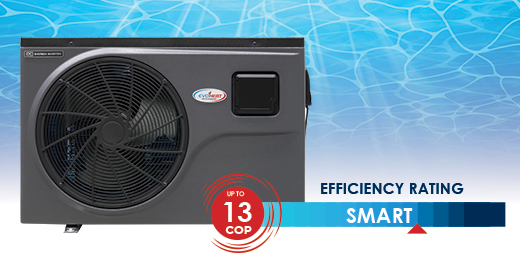

The Evo Fusion-i Pro delivers pool heating through exceptional performance with low operating costs, with a C.O.P of up to 13.

Extend Your Swim Season

The Evo Fusion-i Pro is the ideal choice for pool and spa owners looking to extend their swim season so they can enjoy their pool more often.

Solar Smart Mode

With our advanced Solar Smart mode, you can program multiple daily timers and performance parameters, allowing you to harness free energy from the sun and lower your heating costs.

Heating, Cooling & Automatic Modes

The Fusion-i Pro series is equipped to automatically heat or cool your pool water based on your set temperature – so you can be sure your pool is always at your desired temperature.

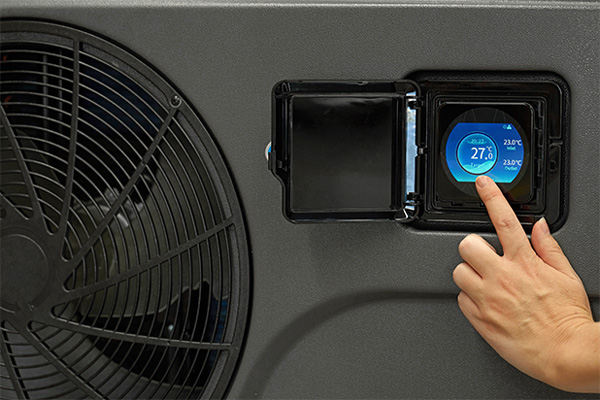

Intuitive Colour Touchscreen Controller

Featuring a user-friendly colour LCD touchscreen controller, the Evo Fusion-i Pro allows you to effortlessly maintain your water temperature while optimising your heater performance.

Wi-Fi Control

Control your Evo pool heat pump anytime, anywhere with the smart Wi-Fi controller app. Available for iOS and Android, the smart phone controller app offers you an easy and convenient way to monitor and control your pool temperature.

Intelligent Built In Timers

Take control of your pool heating with our intelligent built-in timers. Govern when and how long your Evo heat pump operates to make the most of lower energy rates or your own created energy via your solar PV.

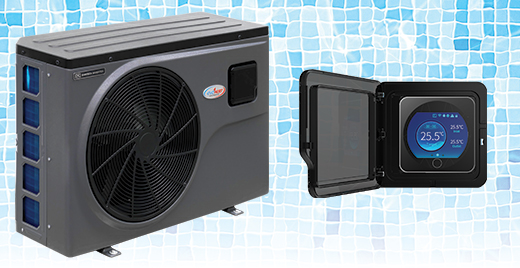

Durable Cabinet & Sleek Design

Built with durability in mind, the Fusion-i Pro features a robust all-weather cabinet and a modern, streamlined design that withstands harsh conditions and looks great in any backyard.

Quiet Operation

The low noise fan blades and silent mode ensures minimal operating noise which is ideal for you and your neighbours!

Eco Friendly Refrigerants

Features eco-friendly R32 refrigerant with a lower global warming potential (GWP), reducing environmental impact while maintaining high efficiency and performance.

Technical Support & Remote Assist

Our expert Technical Support Team is here to provide phone advice and troubleshooting for your EvoHeat pump. With your consent, our Remote Assist service allows us to log into your system via Wi-Fi to quickly diagnose and resolve issues. If onsite assistance is required, our extensive network of EvoHeat Authorised Service Technicians is ready to help.

Industry Leading Warranty

For further peace of mind – the Evo Fusion-i Pro is backed with and industry leading warranty.

Best In The Industry

Nothing out there tops our pool heating range & here’s why…

Evo heat pumps are tough and durable, built for harsh conditions and utilise cutting edge components sourced from leads brand manufactures in Japan, Switzerland, Italy and Germany.

With HVAC components from the world’s premier suppliers you can be certain Evo heat pumps are built to perform and keep on performing!

Specifications

MODEL		Fusion-i Pro 7	Fusion-i Pro 9	Fusion-i Pro 13	Fusion-i Pro 16	Fusion-i Pro 19	Fusion-i Pro 24	Fusion-i Pro 28-3	Fusion-i Pro 35-3
Performance Conditions: air at 27°C/ water 26°C
Heating Output	kW	2~7	2.4~9.36	3.2~12.3	4.18~15.48	4.38~18	4.7~24.6	7.7~28.87	10.3~32.37
Consumed Power	kW	0.17~1.19	0.19~1.57	0.25-2.04	0.32~2.58	0.34~3.17	0.36~3.89	0.59~4.49	0.79~5.90
C.O.P		12~5.89	12.5~5.98	12.7~6.04	12.9~6.01	13.0~5.68	13.0~6.32	13~6.43	13.0~5.49
Performance Conditions: air at 15°C/ water 26°C
Heating Output	kW	1.10~5	1.2~6.6	1.78~9.07	2.17~10.99	2.4~12.47	4.40~18.6	6.4~21.4	7.85~24.41
Consumed Power	kW	0.16~1.14	0.17~1.47	0.25~1.97	0.3~2.34	0.32~2.65	0.61~3.86	0.87~4.38	1.08~4.5
C.O.P		6.9~4.4	7~4.5	7.2~4.6	7.2~4.7	7.4~4.7	7.20~4.81	7.30~4.89	7.27~5.42
Performance Conditions: air at 35°C/ Water 29°C
Cooling Output	kW	1.81~2.61	1.86~3.23	2.45~3.64	3.50~6.60	4.41~7.65	4.95~12.30	5.80~14.51	5.80~14.51
Consumed Power	kW	0.61~0.89	0.69~1.32	0.80~1.23	1.13-1.74	1.52~3.06	1.54~4.30	1.84~5.25	1.84~5.25
E.E.R.		2.99~2.94	2.70~2.45	3.05~2.96	3.10~3.80	2.89~2.50	3.21~2.86	3.14-2.76	3.14-2.76
TECHNICAL DATA
Power Supply		220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	380-415/3/50	380-415/3/50
*Max running current per phase	amps	6.8	9.9	10.51	14.92	15.72	22.5	10.22	11.7
Connection type		10amp	10amp	15amp	Hardwired	Hardwired	Hardwired	Hardwired	Hardwired
Fan Quantity		1	1	1	1	1	1	1	1
Fan Speed	RPM	500~700	500~700	500~850	500~750	500~750	400~800	400~800	400~800
Noise at 1M	dB(A)	38~51	40~52	42~54	44~55	44~56	45~56	45~57	45~57
Noise at 1M in Silent Mode	dB(A)	39	40	43	44	45	46	47	47
Noise at 10M	dB(A)	18~31	20~32	22~34	24~35	24~36	24~46	25~47	25~47
Refrigerant		R32	R32	R32	R32	R32	R32	R32	R32
PVC Water Connection	mm	40	40	40	40	40	40	40	40
Water Flow Volume	L/min	46.67	46.67	66.67	85	85	166.67	200	230
Max. Water Pressure Drop	kPa	1.8	2.8	3	6	6	14	17	20
Unit Dimensions (L x W x H)	mm	934/360/582	934/360/582	934/360/582	1048/453/770.5	1048/453/770.5	1159.5/490/844	1159.5/490/844	1159.5/490/844
Net Weight	kg	41	42	44	60	69	90	93	93

Warranty Period

SERIES	TITANIUM HEAT EXCHANGER	COMPRESSORS	PARTS	ONSITE LABOUR
Fusion-i Pro	25 years	5 years	2 years	1 year

For further peace of mind EvoHeat offer an industry leading warranty of 25 years on the Evo Fusion-i Pro titanium heat exchanger, 5 years on compressors, 2 years on all parts and 1 year on site labour.

EvoHeat have a comprehensive network of specialist service agents nationally to ensure maximum equipment uptime. Spare parts are kept in stock in the extremely unlikely event that they are required.
