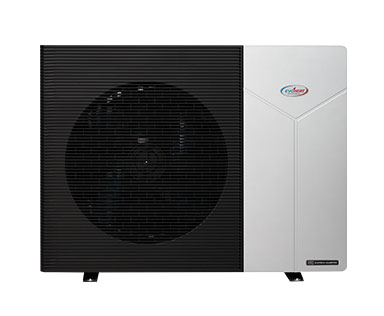

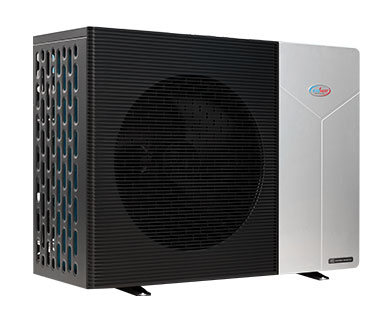

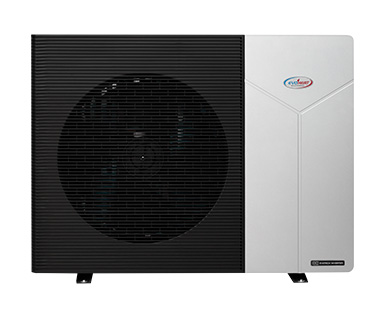

AI FULL INVERTER POOL & SPA HEAT PUMP

The Evo Force-Ai is our next-generation of pool heat pump technology, combining full inverter efficiency with artificial intelligence (AI) to deliver unmatched performance, comfort and running costs savings.

Request an Evaluation Contact Us

Evo Force Ai | Pool Heater

Features
Warranty
User Downloads
Reviews

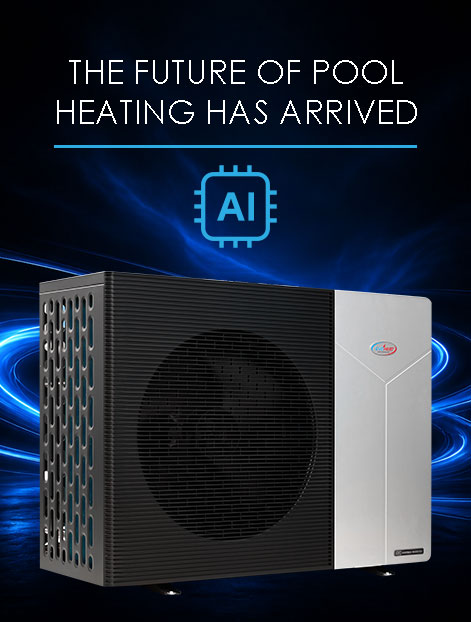

AI Driven Inverter Heat Pump - Industry Leading Technology

Introducing the new Evo Force-Ai, the next generation of pool heat pump technology, combining full inverter efficiency with exclusive artificial intelligence (AI) to deliver unmatched performance, comfort, and running cost savings.

Unlike conventional heaters that simply switch on and off, the Evo Force-Ai actively thinks ahead. Using real-time temperature monitoring combined with advanced artificial intelligence analysis of local weather data, the Evo Force-Ai continuously predicts heating demand and automatically adjusts power consumption to maintain your desired pool temperature in the most efficient way possible.

The AI-driven control system continuously analyses historical operating data, ambient air temperature, target water temperature, and inlet water temperature to optimise compressor speed in real time. By anticipating changing conditions before they occur, the Evo Force-Ai maximises efficiency, maintains precise and consistent water temperature, and delivers up to 30% greater energy savings compared to standard inverter heat pumps. Intelligent performance is matched by intelligent connectivity. The Evo Force-Ai includes 4G Cloud Connect with an integrated SIM, providing instant online access. From day one, you can remotely monitor performance, adjust settings, and access system diagnostics from anywhere. Combined with EvoHeat’s proven full inverter technology, the Evo Force-Ai delivers ultra-quiet operation, precise temperature control, effortless remote connectivity, and industry-leading energy efficiency in every season.

Smarter Control. Lower Energy. Quieter. Bigger Savings!

Extremely energy efficient, C.O.P. up to 22
AI driven technology
Full inverter heat pump technology
Optimum performance series
Heating and cooling capability
Latest cutting edge, intelligent full colour touch screen controller
4G Cloud Control
Modern cabinet design

Built in operational timer
Remote Assist functionality
Solar Smart Optimisation
Eco-friendly R32 refrigerant
Easy installation
Horizontal discharge air flow
Ultra quiet operation
Ideal to work with solar PV

WHERE DATA, INTELLIGENCE & EFFICIENCY UNITE FOR THE ULTIMATE POOL HEATING EXPERIENCE

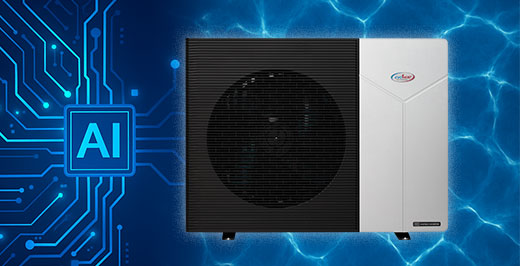

Latest Full Inverter Technology, driven with AI technology

Powered by advanced full inverter technology and intelligent artificial intelligence (AI), the Evo Force-Ai delivers exceptional performance, precise temperature control, and lower running costs.

Its advanced AI control system continuously learns from real-world operating data, analysing user behaviour, target water temperatures, weather forecasts, and ambient conditions to optimise performance.

By intelligently predicting heating demand, the Evo Force-Ai automatically increases heat output ahead of colder weather and reduces power consumption when conditions assist heating.

This proactive approach maintains your desired pool temperature while minimising unnecessary energy use.

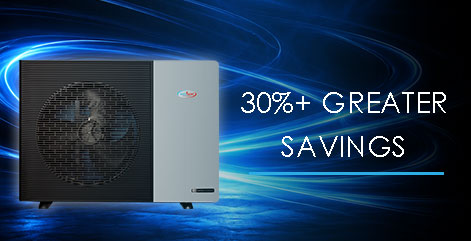

30%+ Greater Energy Savings

The result is a smarter, more efficient pool heating experience, delivering up to 30% greater energy savings compared to standard inverter heat pumps.

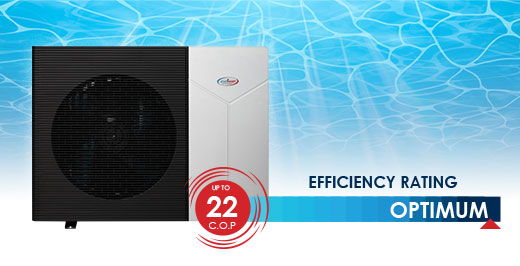

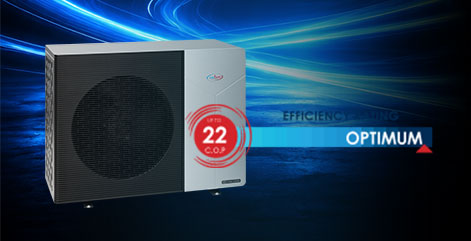

Optimum Performance

The Evo Force Ai delivers pool heating through exceptional performance and the lowest operating costs, with a C.O.P of up to 22.

It ensures the pool stays at temperature without unnecessary energy consumption.

Year Round Swim Season

The Evo Force Ai is the ideal choice for pool and spa owners looking to swim year-round with the lowest pool heating running costs.

Solar Smart Mode

With our advanced Solar Smart mode, you can program multiple daily timers and performance parameters, allowing you to harness free energy from the sun and lower your heating costs.

Heating & Cooling Modes

The Force Ai series is equipped to heat or cool your pool water.

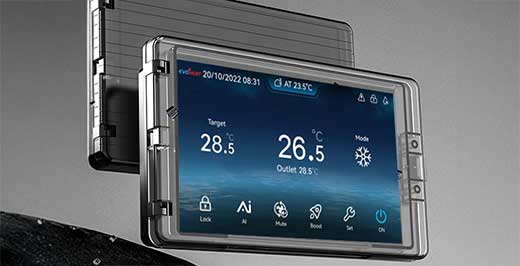

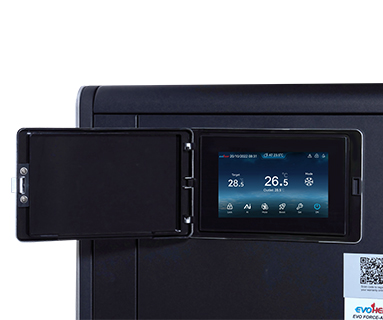

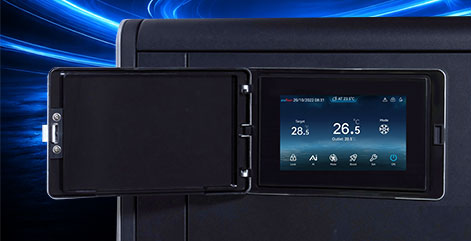

Intuitive Full Colour Touchscreen Controller

Designed with a cutting edge intelligent colour LCD touchscreen controller, you can maintain your water temperature to within 0.1 of a degree while maximising optimum heater operating performance.

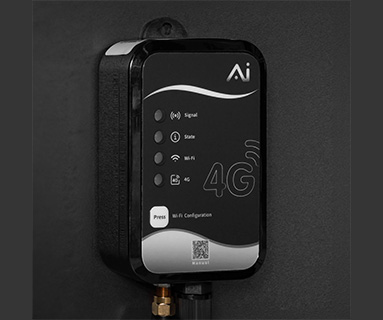

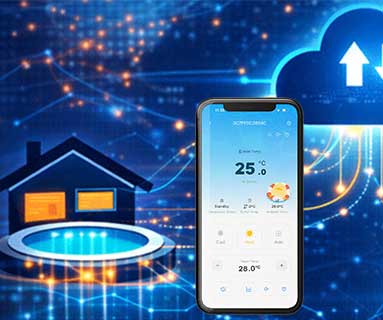

4G Cloud Connect

Control and monitor your Evo Force-Ai pool heat pump anytime, anywhere with the 4G Cloud Connect. The builtin SIM card connects automatically to a cellular network – No pairing. No hassles!
*2 years data included

Intelligent Built In Timers

Take control of your pool heating with our intelligent built-in timers. Govern when and how long your Evo heat pump operates to make the most of lower energy rates or your own created energy via your solar PV.

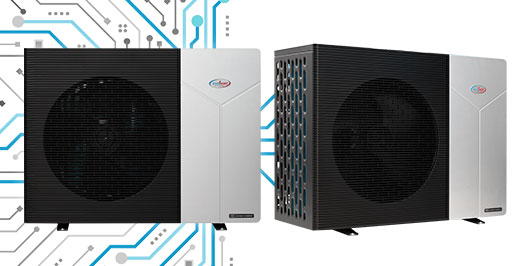

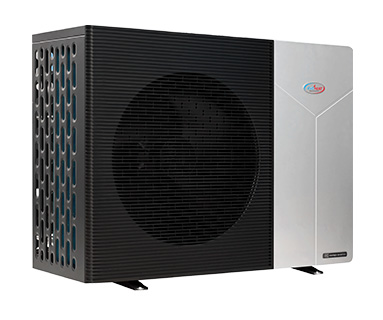

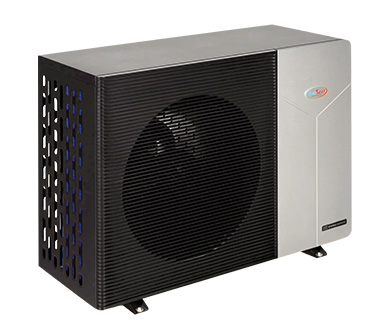

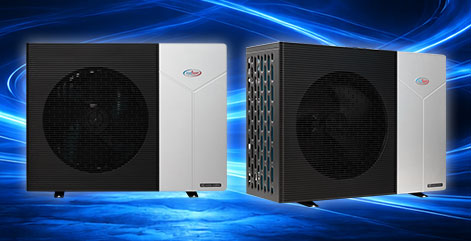

Durable Cabinet & Sleek Design

Built with durability in mind, the Force Ai features a robust cabinet and a modern, streamlined design that withstands harsh conditions and looks great in any backyard.

Quiet Operation

The low noise fan blades and silent mode ensures minimal operating noise which is ideal for you and your neighbours!

Eco Friendly Refrigerants

Features eco-friendly R32 refrigerant with a lower global warming potential (GWP), reducing environmental impact while maintaining high efficiency and performance.

Technical Support & Remote Assist

Our expert Technical Support Team is here to provide phone advice and troubleshooting for your EvoHeat pump. With your consent, our Remote Assist service allows us to log into your system via Wi-Fi to quickly diagnose and resolve issues. If onsite assistance is required, our extensive network of EvoHeat Authorised Service Technicians is ready to help.

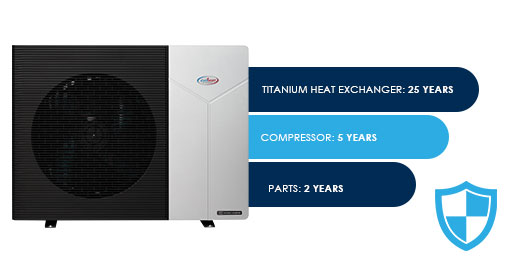

Industry Leading Warranty

For further peace of mind – the Evo Force Ai is backed with an industry leading warranty.

Best In The Industry

Nothing out there tops our pool heating range & here’s why…

Evo heat pumps are tough and durable, built for harsh conditions and utilise cutting edge components sourced from leads brand manufactures in Japan, Switzerland, Italy and Germany.

With HVAC components from the world’s premier suppliers you can be certain Evo heat pumps are built to perform and keep on performing!

Specifications

MODEL		Force-Ai 13	Force-Ai 16	Force-Ai 19	Force-Ai 22	Force-Ai 28	Force-Ai 32	Force-Ai 32-3
Performance Conditions: air at 27°C/ water 26°C
Heating capacity in boost mode	kW	12.5	15.8	18.5	22	28	32	32
Heating Capacity	kW	4.02~10.7	4.3~13.6	5.64~17.1	6.29~20.6	6.95~26	6.96~30.1	6.96~30.1
Power Input	kW	0.19~1.53	0.20~1.94	0.25~2.34	0.28~2.61	0.33~3.71	0.35~4.30	0.35~4.30
C.O.P		21.52~7	21.52~7	22.31~7.3	22.42~7.9	21.03~7	20.02~7	20.02~7
Performance Conditions: air at 15°C/ water 26°C
Heating Capacity	kW	1.43~8.32	1.62~10.17	2.5~13.1	3.05~16.1	3.3~20.4	3.3~24.36	3.3~24.36
Power Input	kW	0.18~1.63	0.2~2.03	0.29~2.42	0.32~2.89	0.4~4.08	0.41~4.787	0.41~4.77
C.O.P		7.95~5.11	8.02~5.01	8.51~5.4	9.52~5.58	8.23~5.0	8.02~5.10	8.02~5.10
Performance Conditions: air at 35°C/ Water 29°C
Cooling Capacity	kW	1.5~4.8	2.5~7.2	3.6~9	5~13	5.9~15.5	4~18	4~18
Power Input	kW	0.33~1.33	0.66~2.4	0.72~2.14	1~3.25	1.2~4.05	1.08~6.20	1.08~6.20
E.E.R.		4.5~3.6	3.8~3	5.0~4.2	5.0~4.0	4.9~3.8	3.7~2.9	3.7~2.9
TECHNICAL DATA
Temperature Settings	8°C - 38°C	8°C - 38°C	8°C - 38°C	8°C - 38°C	8°C - 38°C	8°C - 38°C	8°C - 38°C	8°C - 38°C
Power Supply		220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	380-415/3/50
*Max amps per phase boost mode	amps	11.2	12.5	14.1	16.6	24	27.4	10.26
Rated power input	kW	2.56	2.81	3.23	3.82	5.5	6.25	6.36
Connection type		15 amps	15 amps	Hardwired	Hardwired	Hardwired	Hardwired	Hardwired
Fan Quantity		1	1	1	1	1	1	1
Fan Speed	RPM	650	650	630	650	750	750	750
Noise at 1M	dB(A)	36~42	39~43	40~43.5	41~46	42~51	43~52	45~52
Noise at 1M silent mode	dB(A)	34	35	36	37	39	40	41
Noise at 10M	dB(A)	18.6~24.6	21.6~25.6	22.6~26.1	23.6~28.6	24.6~31.6	25.6~32.6	27.6~34.6
Refrigerant		R32	R32	R32	R32	R32	R32	R32
PVC Water Connection	mm	40	40	40	40	40	40	40
Water Flow Volume:	L/min (min - max)	58	75	110	140	165	200	207
Max. Water Pressure Drop	kPa	3	4	5	8	8	10	10
Unit Dimensions (L x W x H)	mm	1060/475/768	1060/475/768	1144/489/865	1144/489/865	1144/489/865	1144/489/865	1144/489/865
Net Weight	kg	80	90	113	122	134	135	135

Warranty Period

SERIES	TITANIUM HEAT EXCHANGER	COMPRESSOR	PARTS	ONSITE LABOUR
Force Ai	25 years	5 years	2 years	1 year

For further peace of mind EvoHeat offer an industry leading warranty of 25 years on the Evo Force Ai titanium heat exchanger, 5 years on compressors, 2 years on all parts and 1 year on site labour.

EvoHeat have a comprehensive network of specialist service agents nationally to ensure maximum equipment uptime. Spare parts are kept in stock in the extremely unlikely event that they are required.
