Engineered to meet the demands of any commercial application, the award winning Evo CS-i is the most reliable and efficient way to heat a commercial pool. Designed with the latest full inverter technology and exclusive smart features, the Evo CS-i delivers reliable, year-round performance with the lowest operating costs and ultra quiet operation.

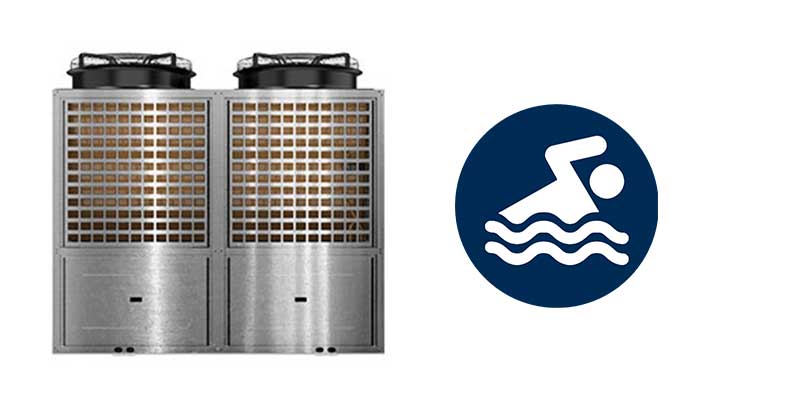

Ideal for aquatic facilities, sports and leisure centres, water parks, apartments, resorts and hotels – there is no job too big for the Evo CS-i series!
Designed with the latest full inverter technology and exclusive smart features, the award winning Evo CS-i delivers reliable year round performance with the lowest running costs.
Ideal for aquatic facilities, sports and leisure centres, water parks, apartments, resorts and hotels, – there is no job too big for the Evo CS-i series!
The Evo CS-i is the most reliable and efficient way to heat a commercial pool. Ideal for aquatic facilities, sports and leisure center’s, water parks, apartments, resorts and hotels – there is no job too big for the Evo CS-i series!

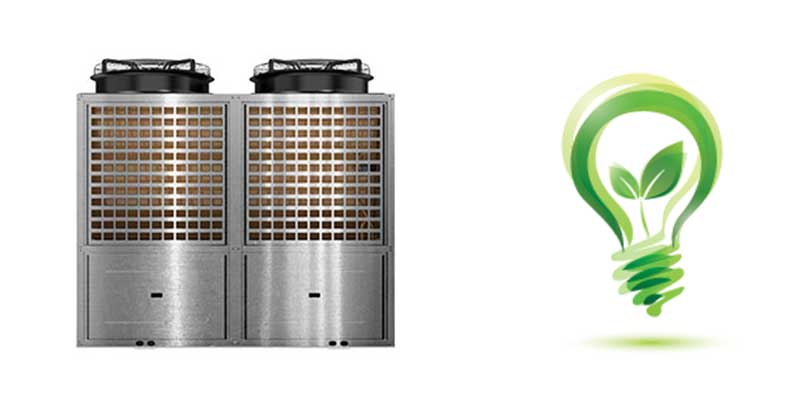

Evo CS-i series delivers commercial pool heating with exceptional performance, low operating costs & a C.O.P. as high as 16.1. Combine your Evo pool heat pump with a pool blanket &/or your solar PV for the ultimate energy efficient pool heating!

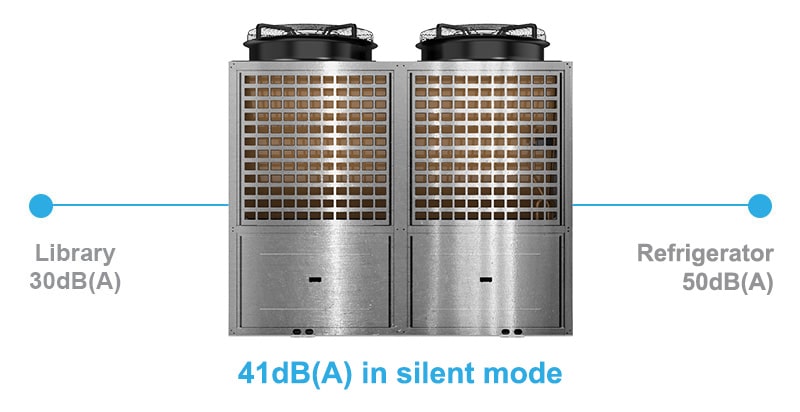

Designed with low noise fan blades and silent mode, the Evo CS-i provides maximum performance with whisper quiet operating noise.
Designed with the latest full inverter technology- including DC stepless compressors, fans, and PC boards; the Evo CS-i will automatically adjust it’s power and electricity consumption based on the exact requirements of your pool.
This ensures you pool reaches the desired temperature faster, and is maintained more efficiently – SAVING YOUR ON YOUR ENERGY BILL.

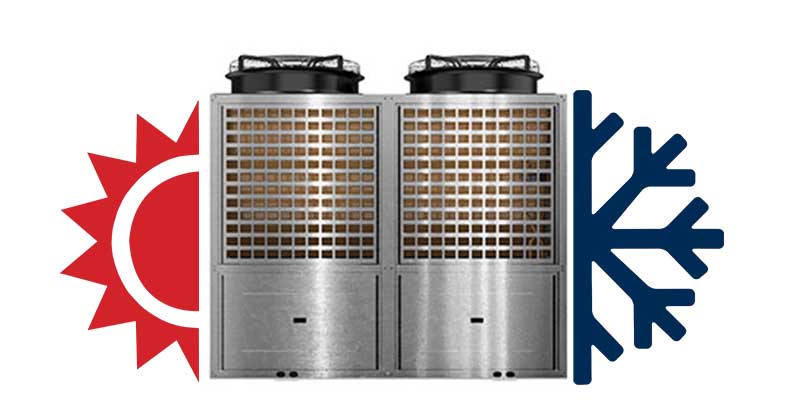

The Evo CS-i series is equipped to automatically heat or cool your pool water based on your set temperature – so you can be sure your pool is always at your desired temperature.

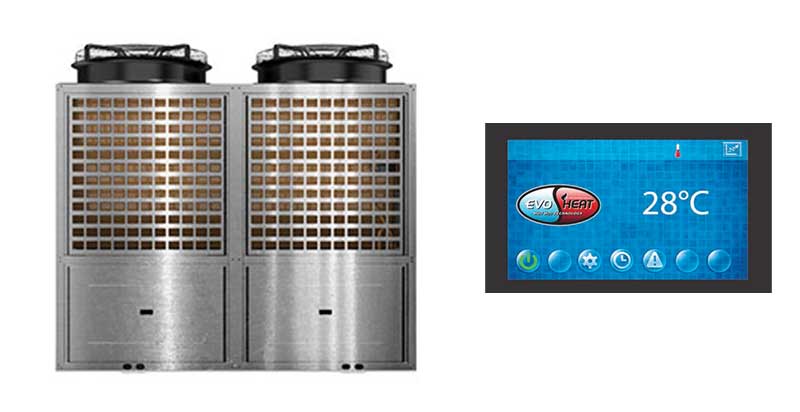

Designed with a cutting edge, intelligent LCD touch screen controller, you can maintain your water temperature to within 0.1 degree while maximising optimum heater operating performance.
Ideal for commercial applications, the power boost mode allows you to increase the heat output to heat your pool faster.
Take control of your pool heating with the intelligent built in timers. Govern when and how long your Evo heat pump operated to make the most of off-peak energy tariffs or your own created energy via solar PV.

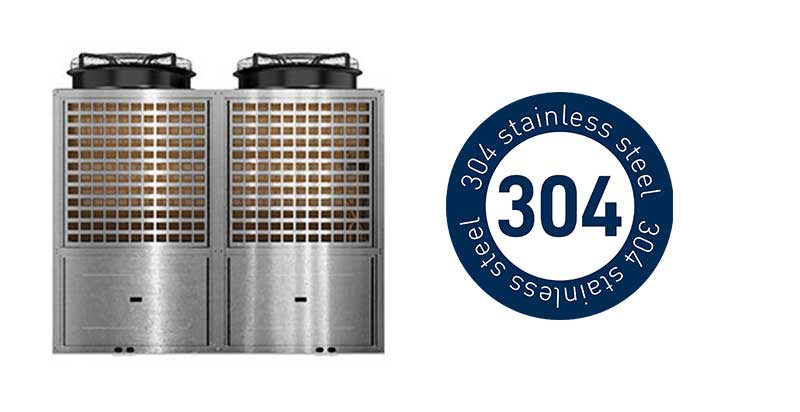

The 304 stainless steel cabinet will ensure long term corrosion resistance. Ask us about out optional upgrade to 316 stainless steel.

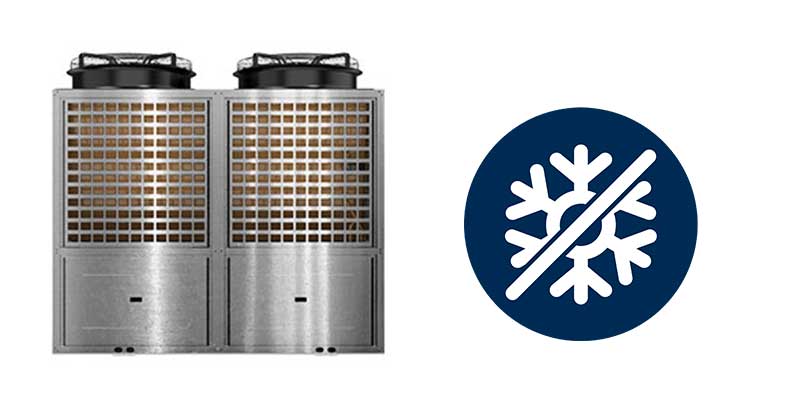

Designed with Dual Defrost with reverse cycle and Thermotec element defrosting technology. The Evo CS-i series provides automatic defrosting and allows the heat pump to work efficiently in ambient temperatures as low as -15°C.
Nothing out there tops our pool heating range & here’s why…
Evo heat pumps are tough and durable, built for harsh conditions and utilise cutting edge components sourced from leading brand manufactures in Japan, Switzerland, Italy and Germany.
With HVAC components from the world’s premier suppliers you can be certain Evo heat pumps are built to perform and keep performing.
For further peace of mind – the Evo CS-i is backed with an industry leading warranty.
|MODEL||CS-i 65||CS-i 130||CS-i 250|
|Heat output at 27 deg air 26 deg water||kW||65||130||246|
|Heat output at 15 deg air 26 deg water||kW||50.1||100||186|
|Cooling output at 35 deg air 30 deg water||kW||30.2||73.4||128.4|
|Cooling output at 43 deg air 26 deg water||kW||18.4||54.8||109.2|
|C.O.P. at 27 deg air||kW||16.10 - 6.10||15.64 - 5.73||14.80 - 5.60|
|Power boost mode at 27 deg air||kW||80||175||292|
|Consumed power at 27 deg air||kW||0.76-10.65||1.76-20.97||4.10-43.95|
|*Max running current per phase||AMPS||21||37.7||90|
|*Max running current per phase in BOOST MODE||AMPS||26.3||46.1||105.5|
|Compressor type||Mitsubishi DC||Hitachi DC||Hitachi DC|
|PVC water connection||mm||50||100mm flange||100mm flange|
|Water flow rate||L/min||458||883||1000|
|Noise at 1M||dB(A)||41-60||42-63||59-70|
|Net dimensions LxWxH||mm||1735/843/1738||2260/1177/2182||2540/1330/2470|
|SERIES||TITANIUM HEAT EXCHANGER||COMPRESSORS||PARTS||ONSITE LABOUR|
|Evo CS-i Series||25 years||5 years||2 years||1 year|

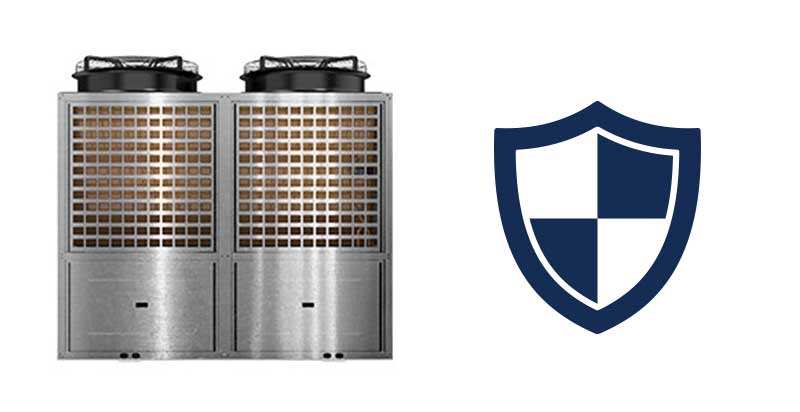

For further peace of mind EvoHeat offer an industry leading warranty of 25 years on the CS-i titanium heat exchanger, 5 years on compressors, 2 years on all parts and 1 year on site labour. EvoHeat have a comprehensive network of specialist service agents nationally to ensure maximum equipment uptime. Spare parts are kept in stock in the extremely unlikely event that they are required.
EvoHeat means smarter living through energy saving. Contact Us today!
